AD-50

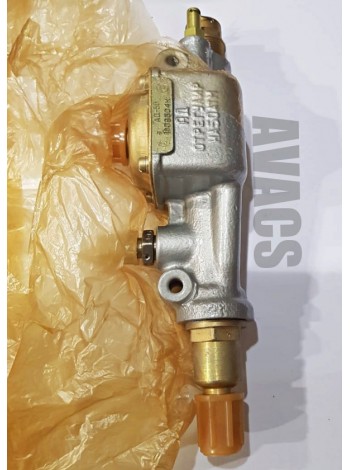

Automatic pressure AD-50

The automatic pressure transmitter AD-50 is designed to automatically switch the AK-50T compressor from operating mode to idle mode when air pressure in cylinders reaches 50 ... 54 kgf / sq. Cm. and back to the operating mode for filling cylinders - with a drop in air pressure in them not lower than 40 kgf / sq. cm. A pressure machine is placed on the helicopter pneumatic panels on the left side of the fuselage.

Automatic pressure AD-50 consists of

• shells
• piston
• strainer
• check valve
• reduction spring
• needles with nut
• lever needle,
• clamp with roller and spring,
• fittings - supplying air from sources of charging, venting air into the system and venting air to the atmosphere.
